  Play Ton

• The Play Ton project was developed using an Arduino UNO and a piezo speaker as the only connected component. The code includes a file that defines the frequencies and durations of all musical notes. As an example, the project plays the Imperial March from Star Wars. Below are the notes and their corresponding frequencies used in this project.

• Frequencies:
  C0	16.36
  C#0/Db0	17.32
  D0	18.35
  D#0/Eb0	19.45
  ...	...

• You can find the complete list of musical note frequencies on this website.
•

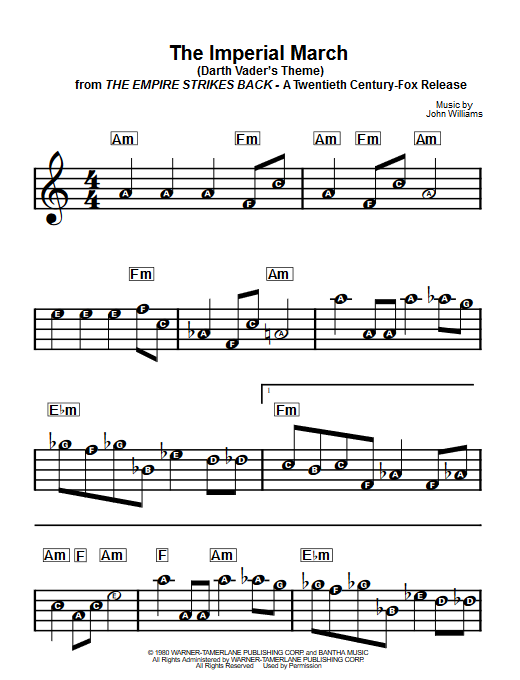

• There are also many examples of the Imperial March available online. The version used in this project was adapted from this source.

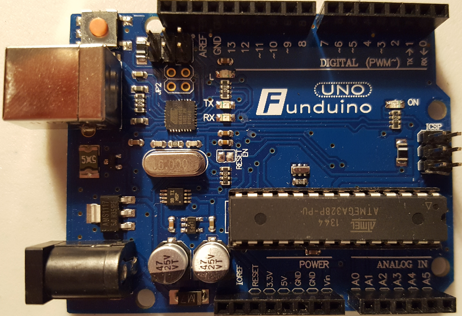

• Hardware used: Arduino UNO:



Video:



• Downloads
  Source Code
